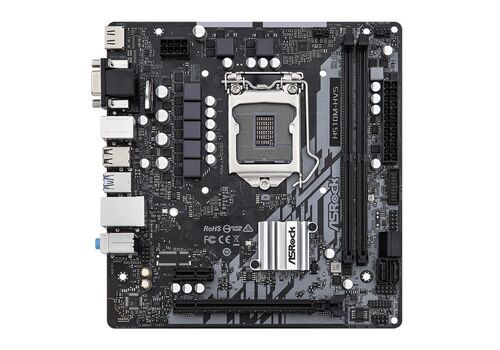

ASROCK μητρική H510M-HVS R.2, 2x DDR4, s1200, USB 3.2, mATX

Η H510M-HVS R.2 της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1200 και βασίζεται στο chipset H510 της Intel.
Διαθέτει δυο εξόδους γραφικών: D-Sub και HDMI.

-Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
-Supports DDR4 3200MHz
-1x PCIe 4.0 x16, 1x PCIe 3.0 x1
-Graphics Output Options: HDMI, D-Sub
-7.1 CH HD Audio (Realtek ALC887/ 897 Audio Codec)
-4x SATA3
-4x USB 3.2 Gen1 (2x Rear, 2x Front)
-Realtek Gigabit LAN

Τεχνικά Χαρακτηριστικά
-CPU: Supports 10th Gen and 11th Gen Intel Core Processors LGA1200
-Supports: 5 Power Phase design, Intel Turbo Boost Max 3.0 Technology
-Chipset: Intel H510
-Memory: 2x DDR4 DIMM Slots, Max. capacity of system memory: 64GB
-BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7, CPU Core/Cache, CPU GT, VCCSA, -DRAM, VCCIO, CPU Standby, VCCIN AUX Voltage Multi-adjustment
-Graphics: HDMI 2.0, HDMI 1.4, D-Sub
-Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec), Supports Surge Protection
-LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, 1x Realtek RTL8111H, Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE
-Slots: 11th Gen Intel Core Processors: 1x PCI Express 4.0 x16 Slot, 10th Gen Intel Core Processors: 1x PCI Express 3.0 x16 Slot, 1x PCI Express 3.0 x1 Slot
-Storage: 4x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
-Form Factor: Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
-OS: Microsoft Windows 10 64-bit / 11 64-bit
-Accessories: Quick Installation Guide, Support CD, I/O Shield, 2x SATA Data Cables
-Connector:
1x SPI TPM Header
1x Chassis Intrusion and Speaker Header
1x CPU Fan Connector (4-pin)
1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
-Rear Panel I/O:
1x PS/2 Keyboard Port
1x PS/2 Mouse Port
1x D-Sub Port
1x HDMI Port
2x USB 3.2 Gen1 Ports (Supports ESD Protection)
4x USB 2.0 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
