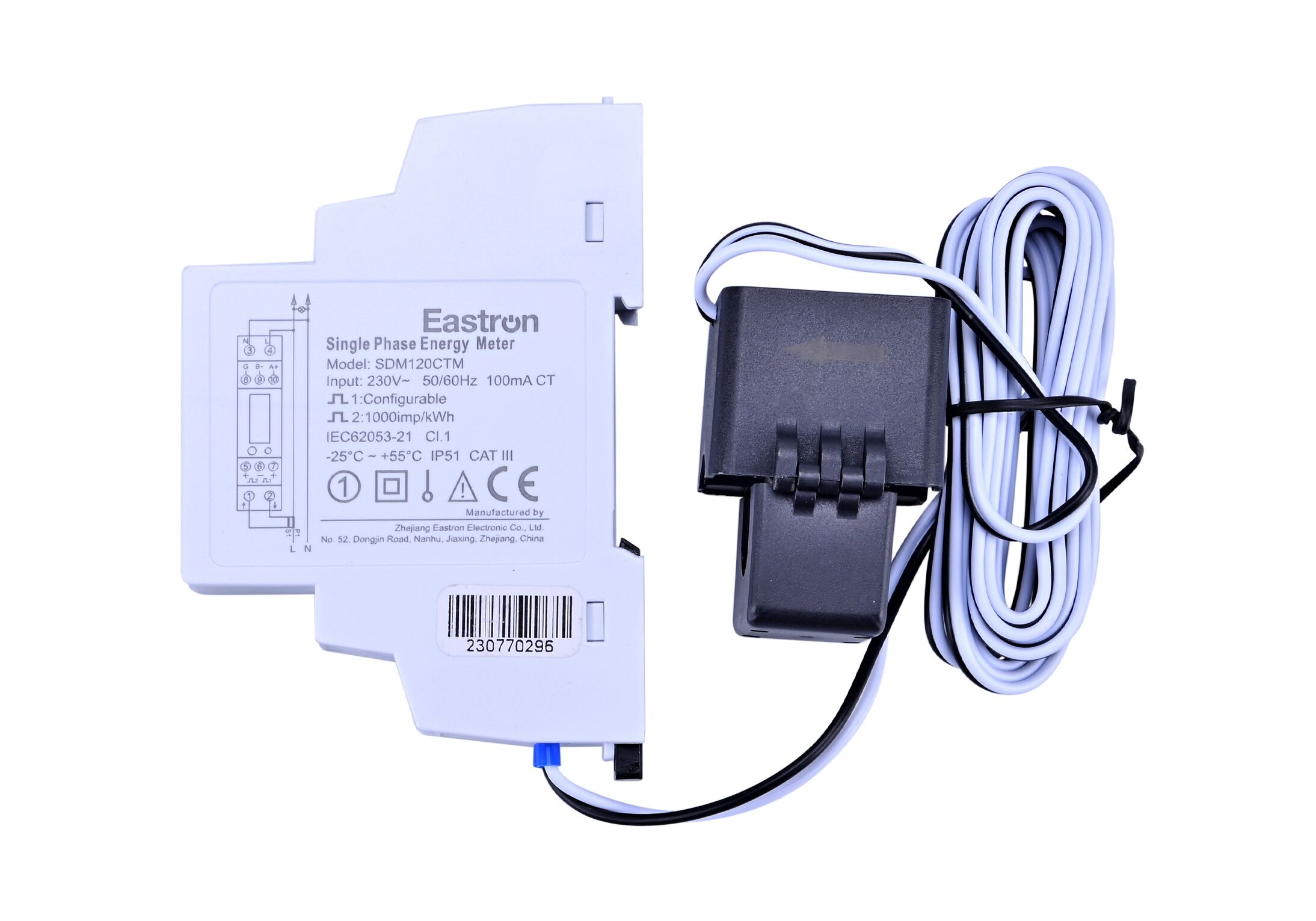

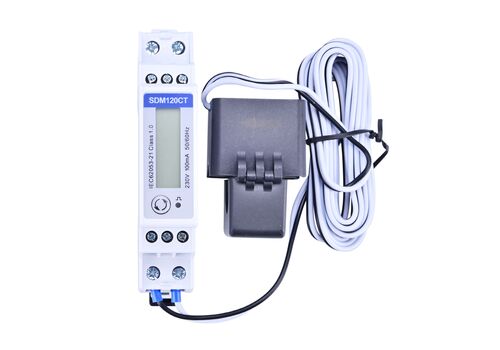

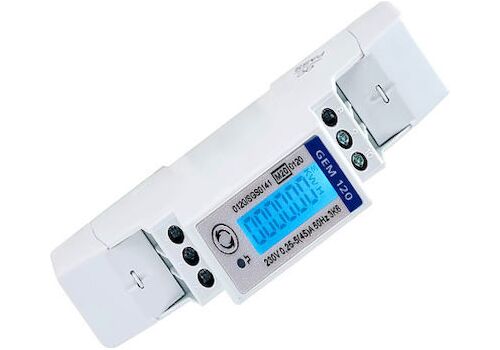

EPEVER EP-GEM-120CT-P ΜΕΤΡΗΤΗΣ ΕΝΕΡΓΕΙΑΣ ΓΙΑ ΜΠΑΤΑΡΙΑ ΛΙΘΙΟΥ BAT-5,2-G3 EPEVER

Έξυπνο όργανο που έχει σχεδιαστεί κυρίως για στατιστικά στοιχεία ηλεκτρικής ενέργειας και ανάγκες διαχείρισης συστημάτων ηλεκτρικής ενέργειας.
Epever SDM120P – 45A Din Rail Single Phase Energy Meter with Pulse Output

General Characteristics
-Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
-LCD with backlit
-2 Pulse Output
-Bi-directional Measurement
-Max. 45A Direct Load
-1 Module 18mm Width
-MID approved
-1P2W

Electrical Characteristics
-Type of Measurement: RMS on single phase AC system (1P+N)
-Power: 1% of range maximum
-Active Energy: IEC 62053-21 Class 1.0/ EN50470-1/3 Class B
-Reactive Energy: IEC62053-23 Class 2, IEC 61557-12 Class 2
-Frequency: 0.2% of mid-frequency
-Current: 0.5% of range maximum
-Voltage: 0.5% of range maximum
-Power Factor: 1% of unity (0.01)

Input Current:
-Rated Current (Ib/Iref): 5A
-Max Current(Imax.) : 45A
-Min Current(Imin.)  : 0.25A
-Starting Current     : 40mA

Input Voltage:
-Rated Voltage (Un) : 230V
-Operational Voltage : 80%~120% of Un
Output:  2 Pulse Output for imp/exp. energy

Modbus Communications
Interface Standard and Protocol : RS485 and MODBUS RTU
Communication Address : 1~247
Transmission Distance : 1000m Maximum
Baud Rate : 1200bps~9600bps
Parity : None (default), Odd, Even
Stop Bits : 1 or 2
Response Time : <100 mS

M-Bus EN13757-3 Communications
Communication Address : 1~250
Transmission Distance : 1000m Maximum
Transmission Speed : 300bps~9600bps
Parity : None (default), Odd, Even
Stop Bits : 1 or 2
Response Time : <100 mS
