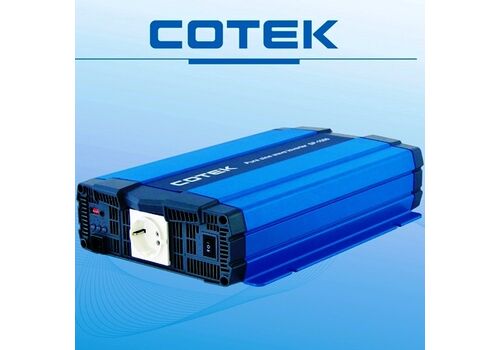

SP-1500-24 INVERTER COTEK 24V 1500W COTEK

SP-1500 Features

-Pure sine wave output
-Power ON / OFF remote control (Green Terminal)
-Input & output fully isolation
-Temperature & load controlled cooling fan
-User friendly interface
-Output frequency 50/60 Hz selectable by DIP switch
-Output voltage DIP switch selectable
-Power saving mode by variable resister
-3-color LED status indicators
-Input protection：Reverse Polarity (Fuse) / Under Voltage / Over Voltage
-Output protection：Short Circuit / Overload / Over Temperature
-E13 / UL / CE / FCC approved

Main Features
◎ New generation pure sine wave inverter ◎ Higher efficiency, high power density ◎ Selectable output voltage and frequency ◎ Robust aluminum case

 -AC Output Voltage          200/220/230/240 VAC
-Rated Power                     1500W (VA)
-Surge Power                     < 2650W (VA)
-Output Waveform              Pure Sine Wave (THD<3%)
-Frequency                           50/60 Hz ± 0.5% (Dip switch selectable)
-DC Input Voltage               24V
-DC Input Voltage Range    5~16.5VDC
-Efficiency                             91%
-operating temperature      -20~-40 C
-Storage Temperature        -30~70℃
-Safety                                   CE / FCC / UL (only for 112/124 GFCI receptacles) / E13
-Dimension (WxHxD)          248x83x421 mm
-Weight (Net)                        4.14kg
