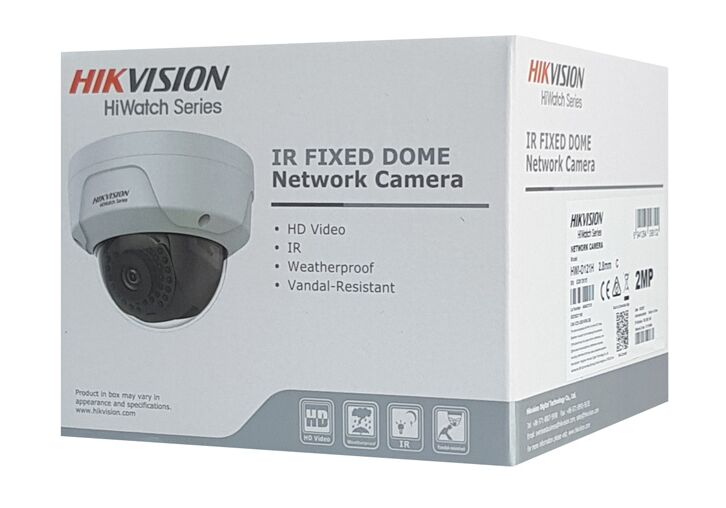

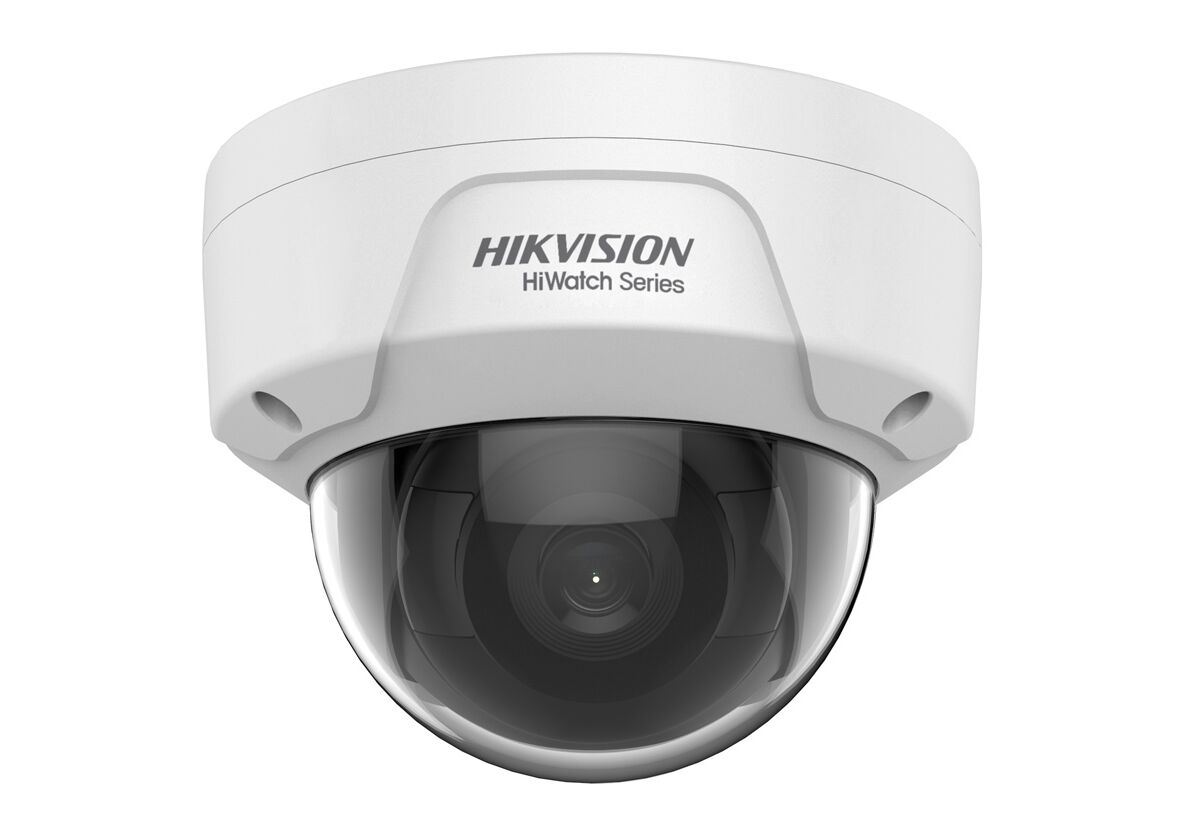

HIKVISION IP κάμερα HiWatch HWI-D121H, POE, 2.8mm, 2MP, IP67 & IK10

HIKVISION IP κάμερα HiWatch HWI-D121H, POE, 2.8mm, 2MP, IP67 & IK10
Δικτυακή κάμερα POE IP της σειράς HiWatch από την HIKVISION, με φακό 2.8mm και ανάλυση 1080p με αισθητήρα 2MP. Τα βίντεο που καταγράφονται αποθηκεύονται με κωδικοποίηση Η.265+ ενώ το εύρος υπερύθρων IR της κάμερας φτάνει έως 30m. Το σώμα της κάμερας είναι κατασκευασμένο από ανθεκτικό μεταλλικό και πλαστικό υλικό με αδιάβροχη προστασία IP67 και αντοχή στα χτυπήματα IK10.

-2MP 1/2.7" progressive scan CMOS
-1920 x 1080p ανάλυση
-φακός 2.8mm
-κωδικοποίηση Η.265+
-εύρος υπερύθρων IR έως 30m
-ανθεκτικό σώμα με προστασία IP67 και IK10
-ιδανική για εσωτερική και εξωτερική χρήση
-3D DNR, DWDR

Τεχνικά χαρακτηριστικά
Image Sensor: 1/2.7" Progressive Scan CMOS
Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed: 1/3 s to 1/100, 000 s
Slow Shutter: Ναι
Wide Dynamic Range: Digital WDR
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°
Focal Length & FOV: 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
Lens Mount: M12
Focus: Fixed
Aperture: F2.0
IR Wavelength: 850 nm
IR Range: Up to 30 m
Max. Resolution: 1920 x 1080
Main Stream: 50Hz: 25fps (1920x1080, 1280x720), 60Hz: 30fps (1920x1080, 1280x720), Sub-Stream, 50Hz: 25fps (640x480, 640x360), 60Hz: 30fps (640x480, 640x360)
Video Compression: Main Stream: H.265/H.264, Sub-Stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
H.264+: Main Stream supports
H.265+: Main Stream supports
Region of Interest (ROI): 1 fixed region for main stream
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface, ISAPI
User/Host: Up to 32 users. 3 levels: administrator, operator and user
Client: iVMS-4200, Hik-Connect
Web Browser: Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client, software or web browser.
Day/Night: Switch Day, Night, Auto, Schedule
Image Enhancement: BLC, 3D DNR
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event: Motion detection, video tampering alarm, exception
Linkage Method: Upload to FTP, notify surveillance center, send email
Startup and Operating Conditions: -30°C to 60°C. Humidity: 95% or less (non-condensing)
Web Client Language: English, Ukrainian
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP, address filter
Firmware Version: V5.5.120
Power Consumption and Current: 12 VDC, 0.4 A, max. 5 W, PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Supply: 12 VDC ± 25%, PoE: 802.3af, Class 3
Power Interface: Φ 5.5 mm coaxial power plug
Protection: IP67, IK10
