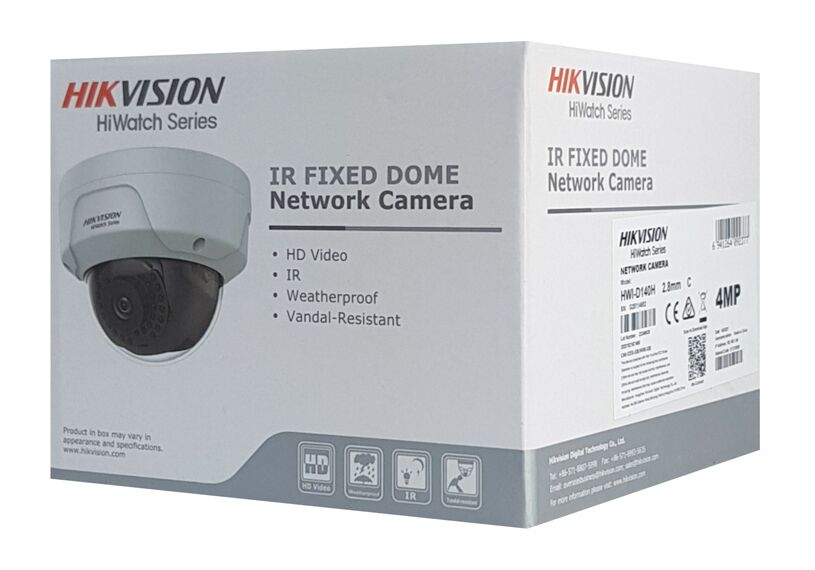

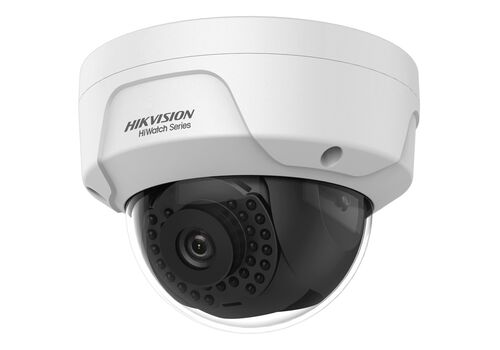

HIKVISION IP κάμερα HiWatch HWI-D140H, POE, 2.8mm, 4MP, IP67 & IK10

HIKVISION IP κάμερα HiWatch HWI-D140H, POE, 2.8mm, 4MP, IP67 & IK10
Δικτυακή κάμερα POE IP της σειράς HiWatch από την HIKVISION, με φακό 2.8mm και ανάλυση 2K με αισθητήρα 4MP. Τα βίντεο που καταγράφονται αποθηκεύονται με κωδικοποίηση Η.265+ ενώ το εύρος υπερύθρων IR της κάμερας φτάνει έως 30m. Το σώμα της κάμερας είναι κατασκευασμένο από ανθεκτικό μεταλλικό υλικό με αδιάβροχη προστασία IP67 και αντοχή στα χτυπήματα IK10.

-4MP 1/3" progressive scan CMOS
-2560 x 1440p ανάλυση
-φακός 2.8mm
-κωδικοποίηση Η.265+
-εύρος υπερύθρων IR έως 30m
-ανθεκτικό σώμα με προστασία IP67 και IK10
-ιδανική για εσωτερική και εξωτερική χρήση
-3D DNR, true WDR

Τεχνικά χαρακτηριστικά
Image Sensor: 1/3" progressive scan CMOS
Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed: 1/3 s to 1/100, 000 s
Slow Shutter: Ναι
Wide Dynamic Range: 120 dB
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°
Focal Length & FOV: 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
Lens Mount: M12
Focus: Fixed
Aperture: F2.0
IR Wavelength: 850 nm
IR Range: Up to 30 m
Max. Resolution: 2560 x 1440
Main Stream: 50Hz: 20fps (2560x1440), 25fps (2304x1296, 1920x1080, 1280x720), 60Hz: 20fps (2560x1440), 30fps (2304x1296, 1920x1080, 1280x720)
Sub-Stream: 50Hz: 25fps (640x480, 640x360), 60Hz: 30fps (640x480, 640x360)
Video Compression: Main stream: H.265/H.264/H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
H.264+: Main stream supports
H.265+: Main stream supports
Region of Interest (ROI): 1 fixed region for main stream
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface, ISAPI
User/Host: Up to 32 users. 3 levels: administrator, operator and user
Client: iVMS-4200, Hik-Connect
Web Browser: Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client, software or web browser
Day/Night Switch: Auto, Schedule, Day, Night
Image Enhancement: BLC, 3D DNR
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event: Motion detection, video tampering alarm, exception
Linkage Method: Upload to FTP, notify surveillance center, send email
Startup and Operating Conditions: -30 °C to 60 °C, Humidity: 95% or less (non-condensing)
Web Client Language: English, Ukrainian
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP, address filter
Firmware Version: V5.5.120
Power Consumption and Current: 12 VDC, 0.4 A, max. 5 W, PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Supply: 12 VDC ± 25%, PoE: 802.3af, Class 3
Power Interface: Φ 5.5 mm coaxial power plug
Protection: IP67, IK10
