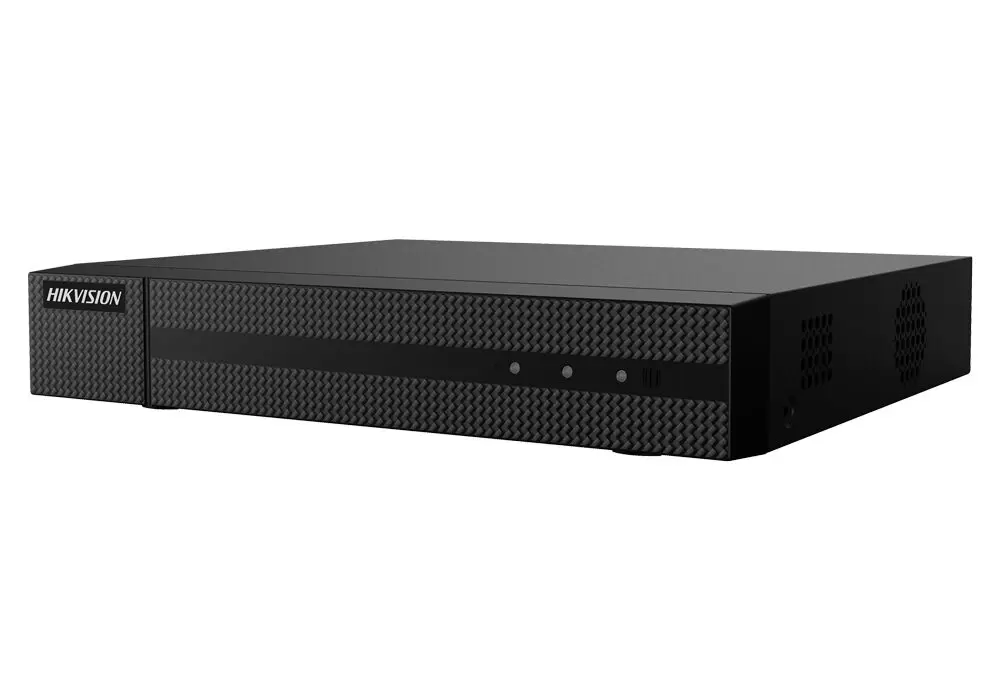

HIKVISION DVR καταγραφικό HiWatch HWD-7104MH-G4, H.265 Pro+, 4 κανάλια

Υβριδικό DVR καταγραφικό 5 σε 1 (HDTV, AHD, CVI, CVBS, IP video input) της σειράς HiWatch από την HIKVISION.
Υποστηρίζει έως και 4 αναλογικά κανάλια ή 8 κανάλια IP με ανάλυση εγγραφής 8MP και κωδικοποίηση βίντεο H.265 Pro+. Επιπλέον υποστηρίζει HDD έως 10ΤΒ.

-Deep learning based human and vehicle targets classification of Motion Detection 2.0
-H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
-HDTVI/AHD/CVI/CVBS/IP video inputs
-Audio via coaxial cable
-Up to 6-ch IP camera inputs (up to 8 MP)
-Up to 8MP @8 fps encoding capability

Τεχνικά χαρακτηριστικά
Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input: 4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input: 8MP @15 fps, 8MP @12.5 fps, 3K @20 fps, 5MP @20 fps, 5MP @12 fps, 4MP @30 fps, 4MP @25 fps, 3MP @18 fps, 1080p @30 fps, 1080p @25 fps, 720p @60 fps, 720p @50 fps, 720p @30 fps, 720p @25 fps
AHD input: 5MP @20 fps, 4MP @25 fps, 4MP @30 fps, 1080p @25 fps, 1080p @30 fps, 720p @25 fps, 720p @30 fps
HDCVI input: 4MP @25 fps, 4MP @30 fps, 1080p @25 fps, 1080p @30 fps, 720p @25 fps, 720p @30 fps
CVBS input: PAL/NTSC
IP video input: 2-ch (up to 6-ch), Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps, Up to 8MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
Audio compression: G.711u
Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
HDMI/VGA output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Encoding resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Main stream Frame rate: 8MP @8 fps/3K @12 fps/5MP @12 fps/4MP @15 fps/3MP @18 fps 1080p/720p/WD1/4CIF/VGA/CIF @25 fps (P)/30 fps (N)
Sub-stream Frame Rate: WD1/4CIF/CIF @25 fps (P)/30 fps (N)
Video bit rate: 32 Kbps to 10 Mbps
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate: 64 Kbps
Dual stream: Support
Stream type: Video, Video & Audio
Synchronous playback: 4-ch
Remote connections: 32
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
SATA Interface: 1 SATA interface
Hard Disk Capacity: Up to 10 TB capacity for each disk
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network interface: RJ45 10M/100M self-adaptive Ethernet interface
USB interface: 2x USB 2.0
Power supply: 12 VDC, 1.5 A
Consumption (without HDD): ? 15 W
Working temperature: -10 °C to +55 °C
Working humidity: 10% to 90%

Περιεχόμενα συσκευασίας: υβριδικό καταγραφικό, ενσύρματο ποντίκι, τροφοδοτικό, καλώδια σύνδεσης, βίδες, εγχειρίδιο χρήσης.
