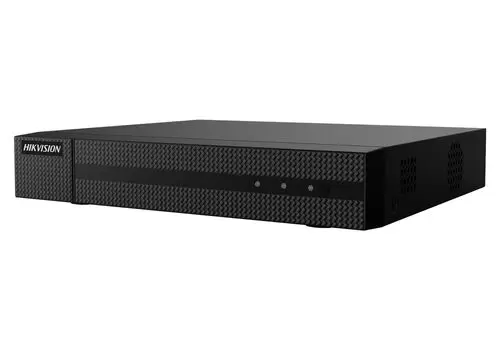

HIKVISION DVR καταγραφικό HiWatch HWD-6116MH-G4, H.265 Pro+, 16 κανάλια

Υβριδικό DVR καταγραφικό 5 σε 1 (HDTV, AHD, CVI, CVBS, IP video input) της σειράς HiWatch από την HIKVISION.
Υποστηρίζει έως και 16 αναλογικά κανάλια ή 24 κανάλια IP με ανάλυση εγγραφής 4MP και κωδικοποίηση βίντεο H.265Pro+. Επιπλέον υποστηρίζει HDD έως 10ΤΒ.

-Deep learning-based motion detection 2.0 for all analog channels
-H.265 Pro+/H.265 Pro/H.265 video compression
-HDTVI/AHD/CVI/CVBS/IP video input
-Audio via coaxial cable
-Up to 24-ch IP camera inputs
-Up to 10 TB capacity per HDD

Τεχνικά χαρακτηριστικά
Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input: 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input: 4MP @30 fps, 4MP @25 fps, 1080p @30 fps, 1080p @25 fps, 720p @60 fps, 720p @50 fps, 720p @30 fps, 720p @25 fps
AHD input: 4MP @25 fps, 4MP @30 fps, 1080p @25 fps, 1080p @30 fps, 720p @25 fps, 720p @30 fps
HDCVI input: 4MP @25 fps, 4MP @30 fps, 1080p @25 fps, 1080p @30 fps, 720p @25 fps, 720p @30 fps
CVBS input: Support
IP video input: 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution
Audio compression: G.711u
Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable
HDMI/VGA output: 1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
Encoding resolution: When 1080p lite mode is not enabled: 4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF When 1080p lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Main stream Frame rate: When 1080p Lite mode is not enabled: 4 MP lite/1080p @15 fps, 720p/VGA/WD1/4CIF/CIF @25 fps (P)/30 fps (N) When 1080p Lite mode is enabled: 4 MP lite @15 fps, 1080p lite/720p lite/VGA/WD1/4CIF/CIF @25 fps (P)/30 fps (N)
Sub-stream Frame Rate: WD1/4CIF @12 fps, CIF @25 fps (P)/30 fps (N)
Video bit rate: 32 Kbps to 10 Mbps
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate: 64 Kbps
Dual stream: Support
Stream type: Video, Video & Audio
Synchronous playback: 16-ch
Remote connections: 128
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
SATA Interface: 1x SATA interface
Hard Disk Capacity: Up to 10 TB capacity for each disk
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network interface: RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface: Rear panel: 2x USB 2.0
Power supply: 12 VDC
Consumption (without HDD): ? 20 W
Working temperature: -10 °C to +55 °C
Working humidity: 10% to 90%

Περιεχόμενα συσκευασίας: υβριδικό καταγραφικό, ενσύρματο ποντίκι, τροφοδοτικό, καλώδια σύνδεσης, βίδες, εγχειρίδιο χρήσης.
